Introduction
Track geometry doesn’t deteriorate randomly—it deteriorates systematically, and base plates sit at the center of that process. Every millimeter of plate wear, every degree of plate rotation, and every instance of localized rail seat compression translates directly into gauge deviation, cant loss, and longitudinal instability. Most maintenance programs chase geometry numbers without tracing them back to the plate condition that drove the deviation in the first place. This guide breaks down the mechanics: how base plate design controls settlement, what wear patterns actually mean for geometry, and what specification decisions prevent both from compounding across the maintenance cycle.

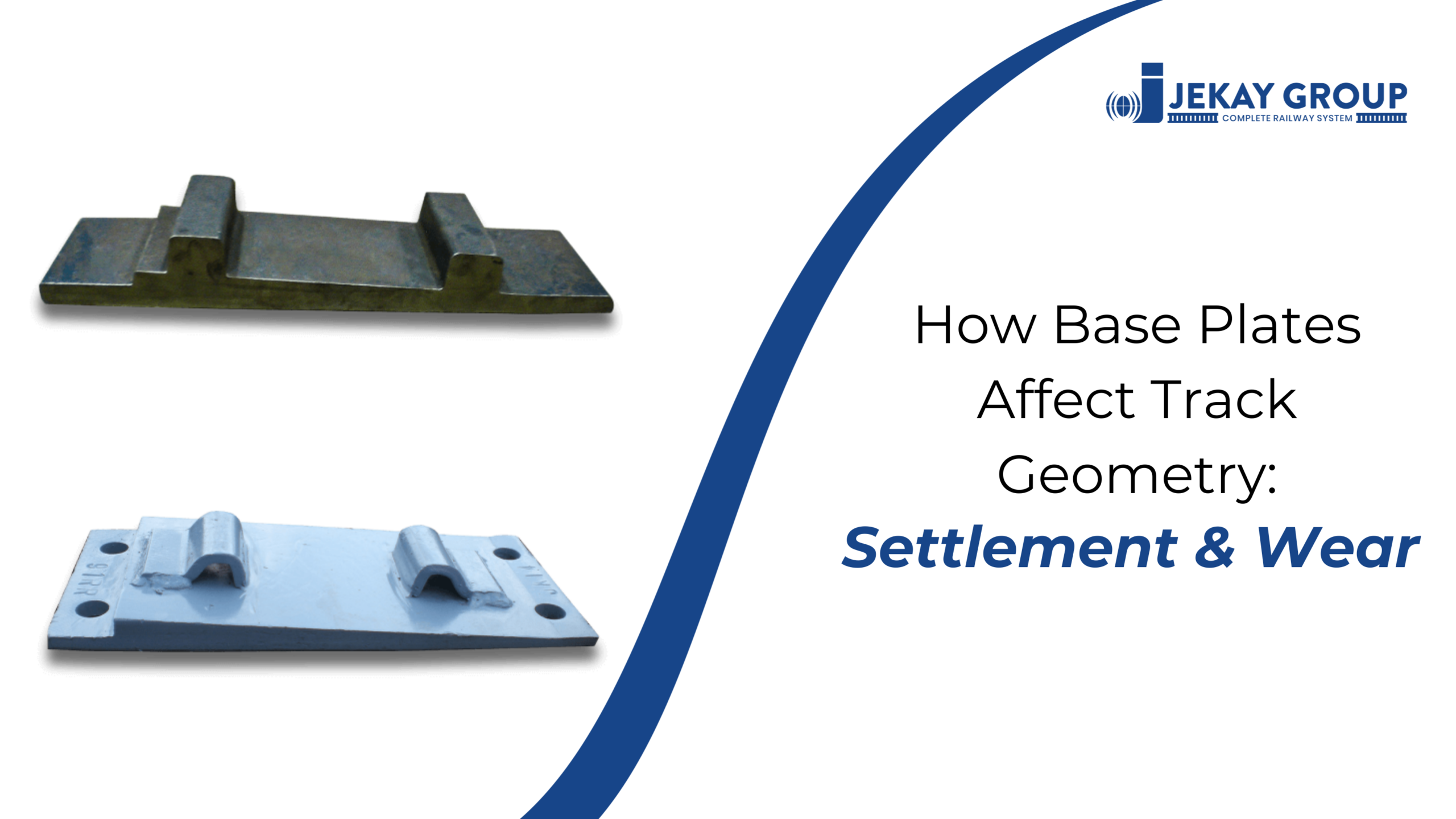

What Base Plates Do in the Track Structure
Base plates sit between the rail base and the sleeper surface, performing three structural jobs simultaneously. They spread the concentrated rail load across a wider bearing area, they hold the rail at the correct cant angle for the track section, and they provide the mounting surface for the elastic fastening system.
Without a base plate, a 60kg rail with a 150mm base width bears directly onto wood or concrete at high pressure—enough to cause permanent deformation within the first year of heavy service. A correctly dimensioned plate extends that bearing contact to 250–300mm, reducing rail seat pressure from 80–100 MPa down to 20–30 MPa.
How Poor Base Plates Cause Settlement
Localized Compression and Track Dip
When a base plate is undersized for the axle load, or worn flat from years of service, its reduced bearing area concentrates load on a smaller footprint. The sleeper surface beneath the plate compresses—plastically in timber, through micro-cracking in concrete—creating a permanent depression at the rail seat.
This depression causes the rail to sit lower at that sleeper than at adjacent ones. The result is a localized track dip that tamping can temporarily correct but cannot permanently fix while the plate condition remains unchanged. Tracks with widespread plate-driven settlement require tamping 40–60% more frequently than equivalent sections with correctly specified plates.
Differential Settlement Across the Panel
Settlement rarely affects a single sleeper in isolation. A worn plate on one sleeper changes the load distribution pattern at adjacent sleepers, which then carry higher dynamic loads and settle faster. The deterioration propagates down the panel, creating a progressive dip geometry that accelerates after each tamping cycle because tamping packs ballast under a still-deteriorating plate.
Rail Seat Deterioration Mechanics
Rail seat deterioration (RSD) is the progressive breakdown of the contact zone between the base plate and the sleeper. On concrete sleepers it starts as abrasion—the plate moves microscopically under each wheel pass, grinding against the concrete surface. On timber sleepers it starts as fiber crushing and spike hole elongation.
The process accelerates when water enters the rail seat zone. Water suspends fine concrete or wood particles that act as abrasive paste under the plate, doubling or tripling the wear rate. Pads that trap water rather than drain it turn a slow wear process into rapid RSD within 3–5 years on heavy-freight sections.
Once RSD reaches 3–5mm of material loss, the plate sits at an angle rather than flat, the rail cant changes, and the fastening system loses its designed clamping geometry.
Wear Problems with Base Plates
Base plate wear takes three distinct forms, each with a specific geometry consequence:
- Surface wear: the bearing face thins from repeated loading cycles; rail sits progressively lower, altering cross-level and triggering geometry alerts
- Spike hole elongation (timber): holes elongate longitudinally as spikes work back and forth under braking and traction forces; plates migrate along the sleeper, shifting rail gauge by 2–6mm before any visible looseness appears
- Shoulder wear: clip shoulders erode from lateral rail movement; once shoulders lose 2mm or more of material, clip toe load drops and the rail becomes free to roll under asymmetric loading
How Base Plates Influence Track Geometry
Gauge Widening
Gauge widens when plates rotate outward under lateral wheel force. A plate that’s loose in its spike or screw fixing, or seated in a deteriorated rail seat, pivots at the rail base edge rather than holding rigid. Each rotation increment adds 0.5–1mm of gauge widening. A section running 3mm wide gauge triggers mandatory speed reduction on most railway networks; 10mm wide requires line closure for emergency repair.
Cant Loss on Curved Track
Canted base plates maintain a 1-in-20 or 1-in-40 rail inclination to optimize wheel-rail contact geometry. When the plate’s cant angle erodes through wear or settles unevenly into a degraded rail seat, the rail rotates to a flatter angle. This shifts wheel-rail contact toward the field side of the rail head, accelerating wear on both the rail and wheel flange and generating higher lateral forces that feed back into further plate loosening.
Longitudinal Creep and Panel Shift
Plates that fail to anchor the rail against longitudinal movement allow thermal expansion forces to drive the rail string forward. On a 300m CWR panel, 3mm of plate-level longitudinal slippage at each sleeper compounds into 30–40mm of total panel displacement—enough to buckle the track in summer temperature spikes if anchor systems aren’t compensating.
Material and Manufacturing Quality Effects
Steel grade is the first quality differentiator. Plates made from mild steel (yield strength 250 MPa) deform under peak dynamic loads on heavy-freight routes. High-strength structural steel grades (yield strength 350–450 MPa) resist deformation through 20+ year service cycles under 25-tonne axle loads.
Manufacturing tolerances matter equally:
- Hole alignment: spike or screw holes out of position by 2mm create eccentric fixing loads that rotate the plate under service loading
- Surface flatness: camber or twist in the bearing face creates line contact rather than full-area bearing, concentrating stress and accelerating rail seat wear
- Cant accuracy: canted plates need angular precision within ±0.1° or the rail inclination falls outside design tolerance from day one
Corrosion protection matters in wet climates and on coastal corridors. Ungalvanized plates lose 0.3–0.5mm of surface material per decade through rust, narrowing the margin between design thickness and fatigue failure.
Inspection and Detection Methods
Track geometry surveys flag the symptoms—gauge deviation, cross-level error, longitudinal dip—but don’t identify the cause. Connecting survey data to base plate condition requires direct inspection:
- Visual inspection: look for plate movement marks on sleeper surface (rust staining in an arc pattern around spike holes, displaced rubber pads), visible cracking at rail seat edges, and lifted clip feet
- Toe load testing: measure clip clamping force with a calibrated tool; clips seated on deteriorated plates often show 20–30% lower toe load than installed specification
- Rail seat measurement: use a depth gauge at the four corners of each plate to detect tilt, settlement, or loss of full bearing contact; any corner reading 2mm+ different from the diagonal corner indicates plate rotation or rail seat deterioration
Geometry deterioration rates are a useful leading indicator. A section that needs tamping every 18 months under stable traffic patterns and suddenly needs tamping every 9 months hasn’t changed its traffic—it’s changed its plate condition.
Prevention Through Proper Specification
Matching plate dimensions to axle load and sleeper type eliminates the most common source of early failure:
- Light rail and metro (axle loads under 17 tonnes): 200–220mm bearing length, 7mm minimum thickness, standard toe load clips
- Mixed traffic mainline (17–25 tonnes): 250–270mm bearing length, 10mm minimum thickness, high-toe-load clips
- Heavy freight (25–32.5 tonnes): 280–300mm bearing length, 12mm minimum thickness, stiffened shoulder design, galvanized finish
Pad compatibility is non-negotiable. Undersized pads leave plate edges exposed to direct rail contact during deflection—the exposed corners then act as stress risers that crack the concrete rail seat over time.
FAQs
Why do some base plates fail faster than others under identical traffic?
Plate failure rate correlates more strongly with installation quality than with traffic alone. Plates installed with even one spike hole out of position carry eccentric loads that accelerate both surface wear and rail seat deterioration. Plates seated on inadequately compacted ballast settle unevenly within the first 12 months, changing bearing geometry before the track has accumulated significant tonnage.
How does base plate wear cause derailments?
The chain is specific: plate wear → rail cant loss → wheel-rail contact shifts toward field side → lateral force spikes → plate rotation → gauge widening. Gauge widening beyond 25mm (on standard gauge) creates a derailment risk at curves and turnouts because the wheel flange no longer contacts the gauge face consistently. Most plate-related derailments follow years of marginal geometry readings that were tamped over rather than investigated at the plate level.
Can you mix plate types on the same track section?
No, for the same reason you can’t mix rubber pad thicknesses—differential track stiffness at plate-type boundaries creates impact force spikes that accelerate wear at the transition point. If you’re replacing plates during track rehabilitation, replace the entire section between rail joints with consistent specifications, not individual sleepers with whatever stock is available.
What role do rubber pads play in slowing plate settlement?
Pads reduce peak dynamic stress at the rail seat by 30–40%, directly slowing the compression process that drives settlement. They also cushion the plate-to-sleeper interface, reducing the micro-movement that causes abrasive wear. A 7mm pad on a concrete sleeper under 25-tonne axle loads can extend rail seat life from 8 years to 15–18 years compared to an unpadded configuration. Pad selection and plate selection need to be co-specified, not treated as independent purchasing decisions.
Conclusion
Base plate condition drives track geometry more directly than most maintenance frameworks acknowledge. Settlement, gauge deviation, and cant loss all trace back to plate design, material quality, and installation precision—not just traffic tonnage and weather. Specify plates to load requirements, pair them with compatible pads, and inspect for wear before geometry alerts force the issue.
If your track geometry data shows accelerating deterioration between tamping cycles, start at the rail seat—not at the tamping program.
